These Premium kits are assembled by us in the UK with our CG by Jupiter Paper-in-Oil capacitors to give a warmer woody tone, CTS “CGS” SupraPots in the volume position to retain tone and note definition as you roll down the volume to give a more natural control and Push Pull CTS pots for the tone controls for full or partial coil split and phase.

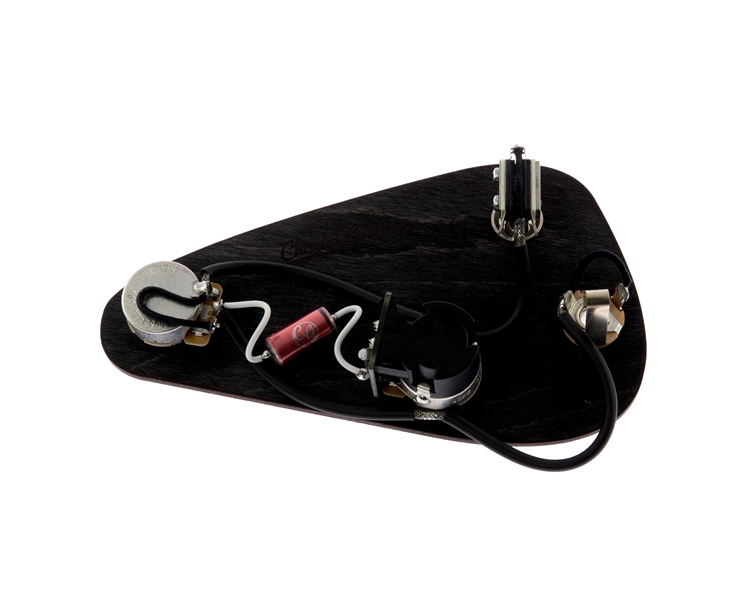

This is a prewired harness for a PRS with 2 hubucker pickups and Imperial spec pots.  For guitars with metric sized pots you may need to enlarge the holes for the higher quality US spec electronics to fit and also you may need US Spec knobs.

With this kit and the options below you can fully or partially split the coils.

The value and taper of the volume controls is particularly important with Humbucker equiped guitars as they are more mid to low end focus and so when you roll down the volume the tone can get dark quickly.  Our "CGS" SupraPots are never below the nominal value and mostly in the +10% range and the custom taper means that the top end clarity is retained so there is no need for a treble bleed.  We select the higher values for the neck volume and tone controls and then balance them with the bridge controls to retain the tone of your guitar.

Please see the options below to customise your kit.

In the Kit:

• [1]  500K CTS “CGS” SupraPots, Short shaft with solid conversion sleeve with 9.5mm (3/8") Shaft Diameter and 9.5mm Threaded Length.
• [1] 500K CTS Push Pull Short Shaft Matched Set Potentiometers with 9.5mm (3/8") Shaft Diameter and 9.5mm Threaded Length.
• [1] 0.022uf CG by Jupiter Paper-in-Oil capacitor
• Wiring Diagram

Full or Partial coil Split

Potentiometer/Kit Selection Table
