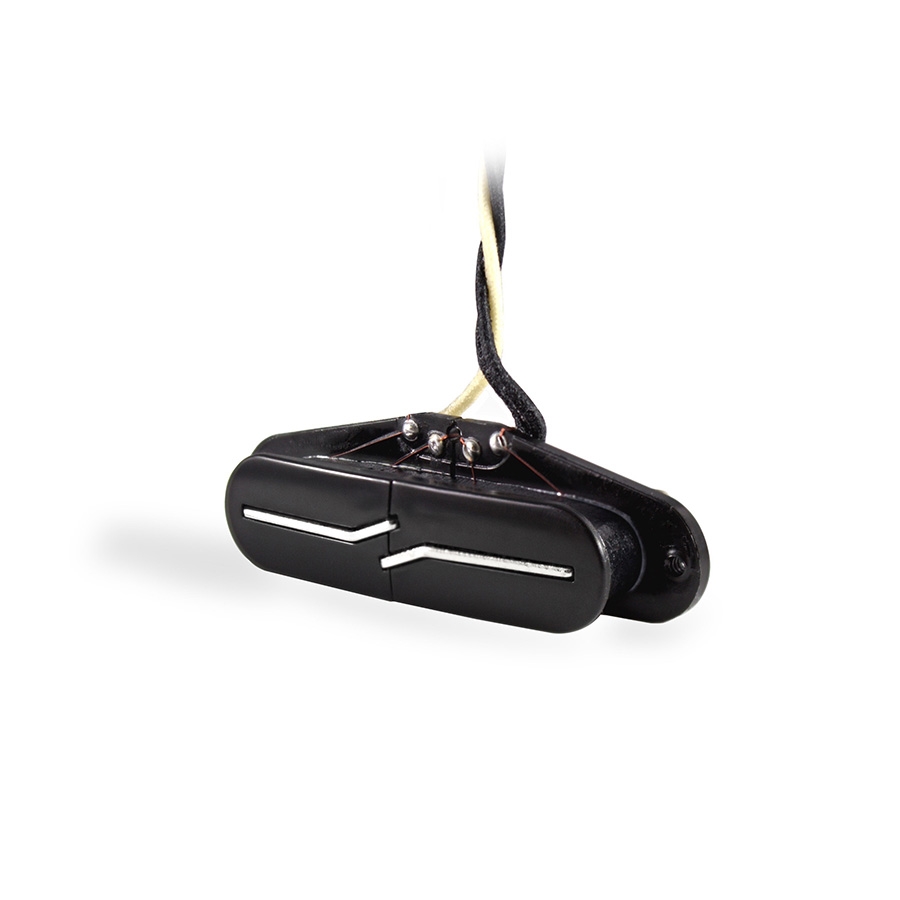

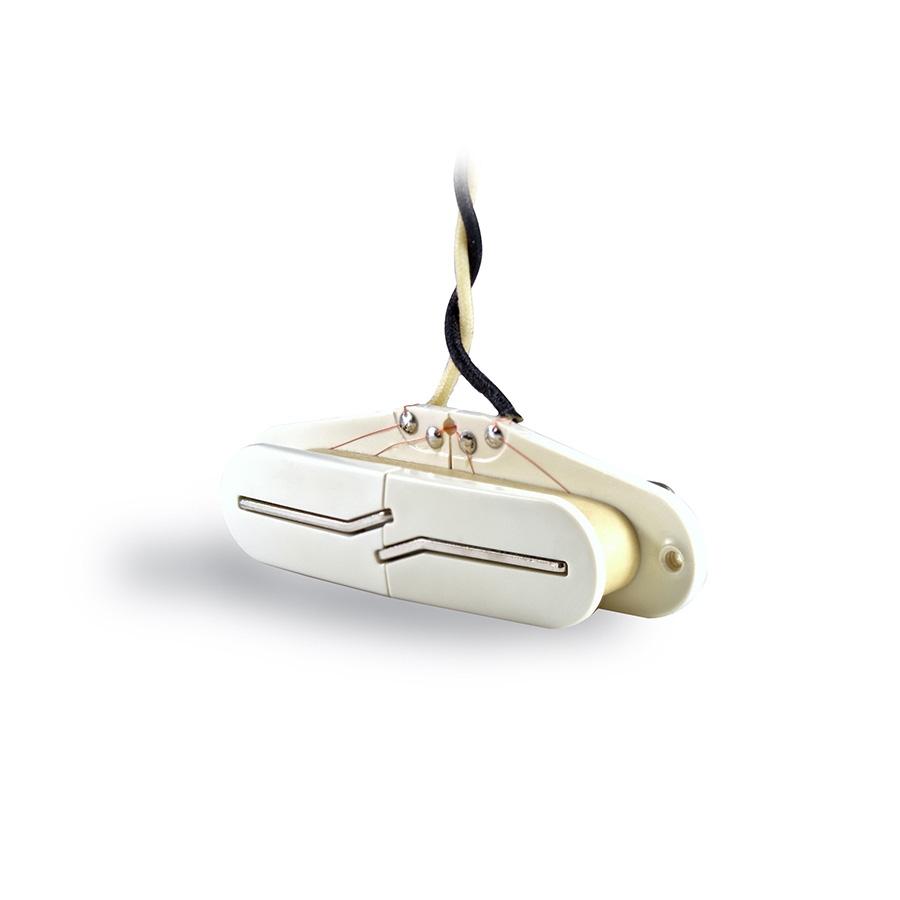

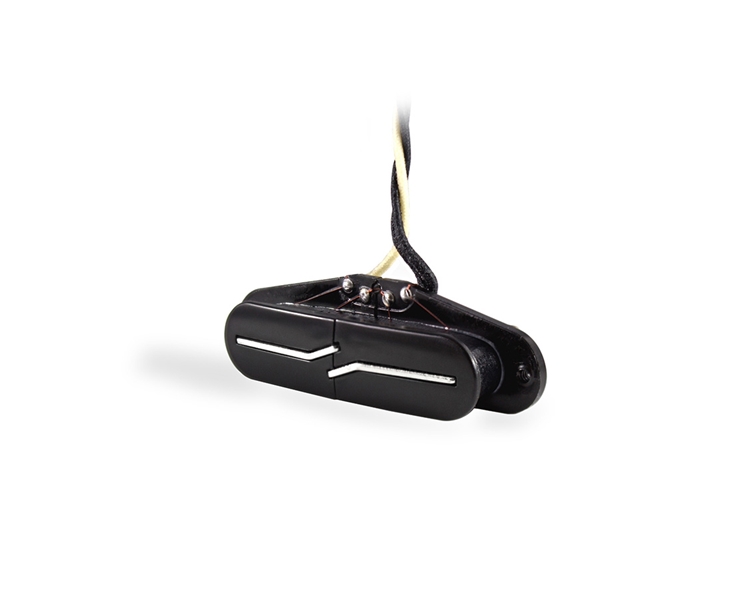

Split Blade Strat Pickups: a Lindy Fralin original! Designed as a fully noise-canceling replacement for Strat-style pickups with all the high-end clarity you expect from a traditional single coil. As always, Lindy Fralin Guitar Pickups will give you the most clarity, articulation, and string definition you can get – period.

Lindy Fralin Split Blade Pickups are unique: they offer a single-coil sound, with no hum, whatsoever. You can expect a fantastic warm, full-bodied tone with incredible string articulation and enhanced detail. Low strings sound clear and articulate, while the plain strings sound thicker than a single-coil, but still sparkle. Also, adjusting the pickup on the Bass and Treble ends allows the player to fine-tune the pickup to their needs.

Split Blade Pickups will not pull strings out of tune – even if they get close. When playing with distortion, Split Blade Pickups sound thick and dynamically creamy. Chords have excellent compression, and single notes have a much broader sonic footprint. Split Blades sound thicker than our Vintage Hots in our Vintage output option.

Are you searching for an authentic Fender Strat sound, but hate hum? We have the solution for you: Split Blade Stratocaster Pickups – The revolutionary design in single-coil sound, without the annoying 60-cycle hum. We’ve built this pickup with a 2-coil design using steel blades for the pole piece. Unlike most humbucking pickups, Split Blades are designed with a left and right coil design, offering a more accurate and more balanced single-coil tone. You can expect a traditional single-coil tone from Split Blades, except with more fatness and warmth. Split Blades are perfect for those who love their guitar’s tone, but want to rid themselves of the noise.

Features:

• A Lindy Fralin Original Design!
• An interesting and unique look
• Clean and clear, lots of Fender sparkle and twang
• Traditional Fender tone, with no noise
• USA-made Magnets for optimal tonal balance and output
• Compensated Bridge for even volume across all pickups
• Three Blade heights available for different fingerboard radiuses
• Hand-wound with our “Sectioning” technique for unique, dynamic tone
• Hand-built for unrivaled quality control
• 10-Year Warranty on manufacturing defects

We wind each pickup by hand, one at a time. Each pickup is wound using our proprietary “Sectioning” technique. This gives the pickup a sweet, clear tone. Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics.

Split Blade 3 Wire if ordering a single:

If buying a single, select this option. You’ll get 3 Wires – White, a Black, and a Blue. This allows you to reverse the phase of the pickup if need be.

Specification:

Vintage Output Ohm Readings:    4.7K Neck / 4.7K Middle / 5K Bridge*
Vintage Output Recommended Pot Value:    250K or 300K
High Output Ohm Readings:    5.3K Neck / 5.3K Middle / 6.7K Bridge*
High Output Recommended Pot Value:    250K or 300K
Blues Output Ohm Readings:    5K Neck / 5K Middle / 5.8K Bridge*
Blues Output Recommended Pot Value:    500K
Super High Output Ohm Readings:    5.8K Neck / 5.8K Middle / 9.5K Bridge*
Super High Output Recommended Pot Value:    500K
Wire:    USA-Made 42 / 43 Gauge Single Poly Nylon, Depending On Model
Magnet:    Ceramic
Polarity:    Hum Cancelling, Request 3 Wire If Buying Single
Pole Pieces:    Steel
Wax Potted:    Yes
